LED drivers for professional lighting

Compact format.
Precise performance.

Eight focused models: compact, linear and track adapter drivers for spotlight, downlight and track-lighting systems. Complete with specifications and ARVIK datasheets.

Explore products Select a driver

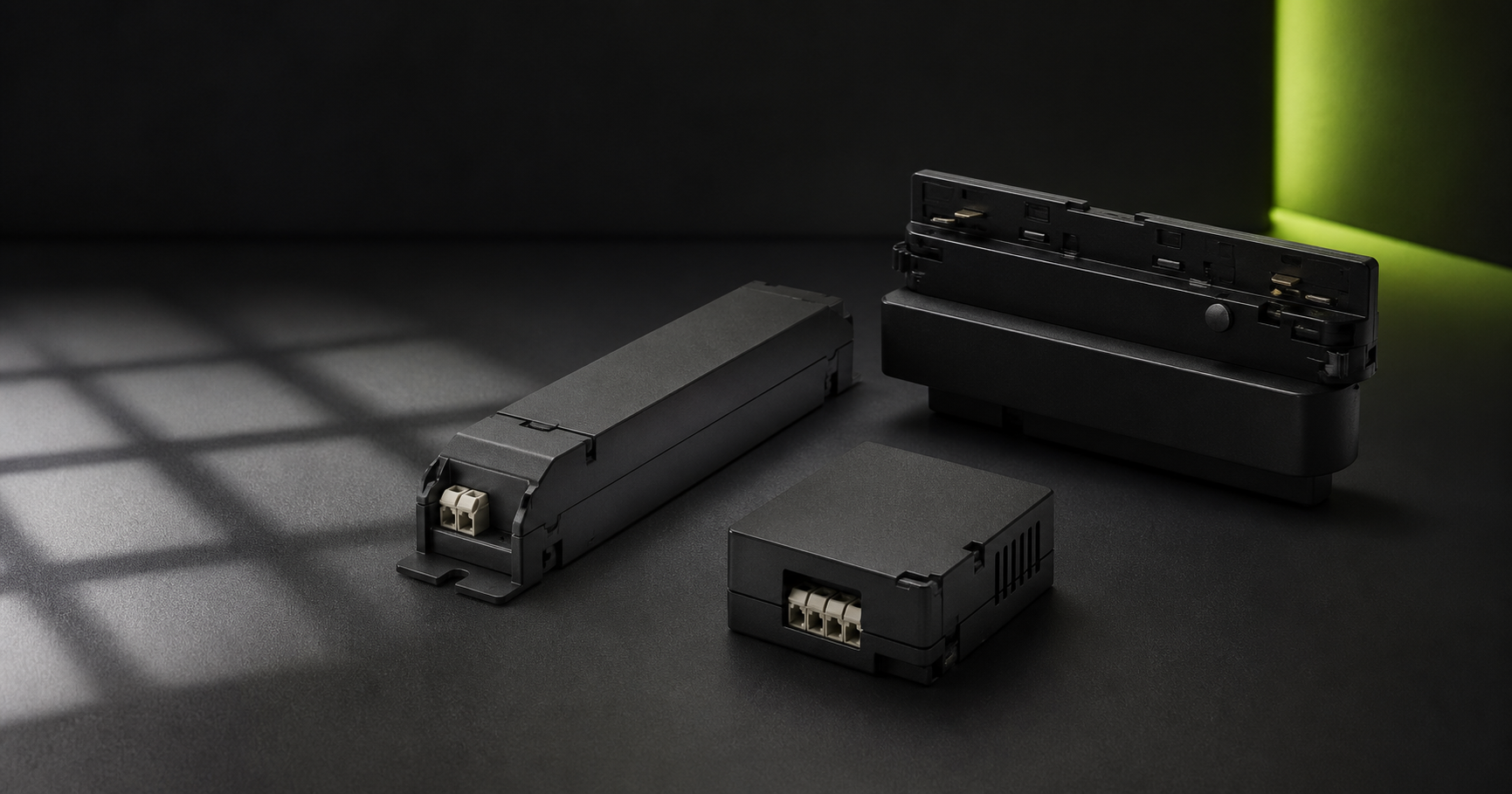

Compact ARVIK LED drivers and a track adapter driver

ARVIK / PRODUCT SYSTEM08 / 03

Product visualisation

5 compact drivers2 track adapter drivers1 linear driver

Product range

Eight models.
Three formats.

Compare operating ranges, dimensions and control methods. A complete PDF datasheet is available for every model.

Compact drivers

For spotlight and downlight luminaires where a small housing and precise current selection matter.

01.01

Compact / DALI-2

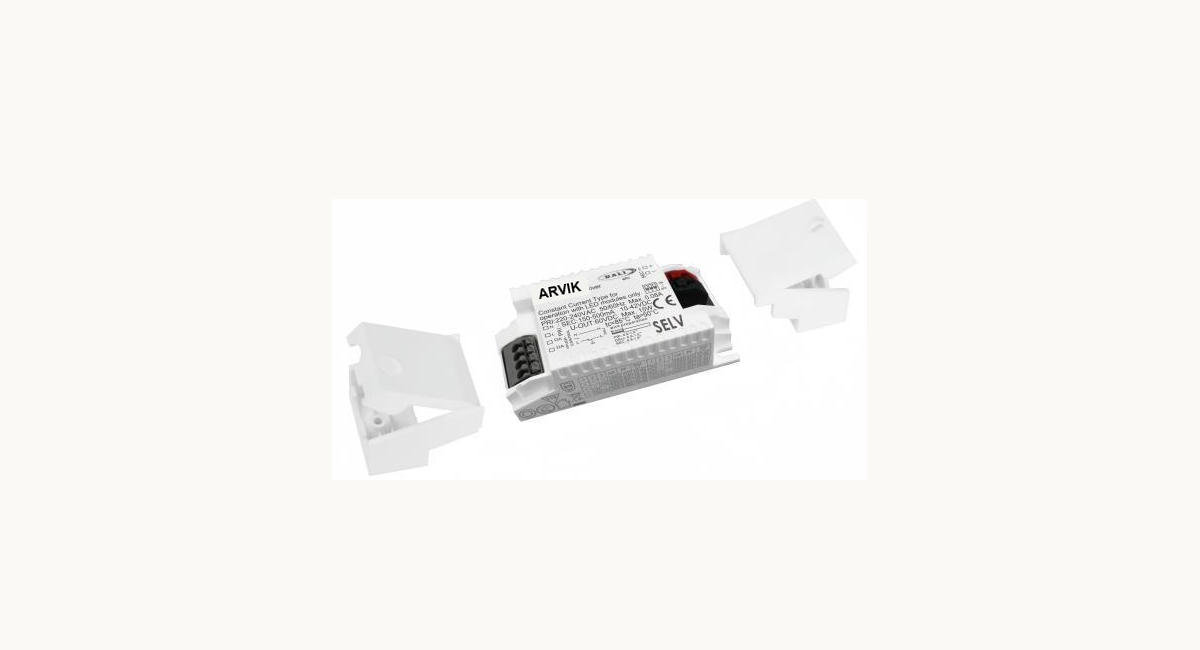

ARVIK MINI 15 DALI

AR-15-500-MI-DALI-AS-SS

A super-compact 15 W driver with DALI-2 and PUSH dimming, designed for installation in restricted spaces.

Power: 15 W
Current: 150-500 mA
Voltage: 10-42 VDC*
Control: DALI-2 / PUSH

75 × 40 × 21 mm
Flicker-free
SELV

Download datasheet Enquire

01.02

Compact / ON-OFF

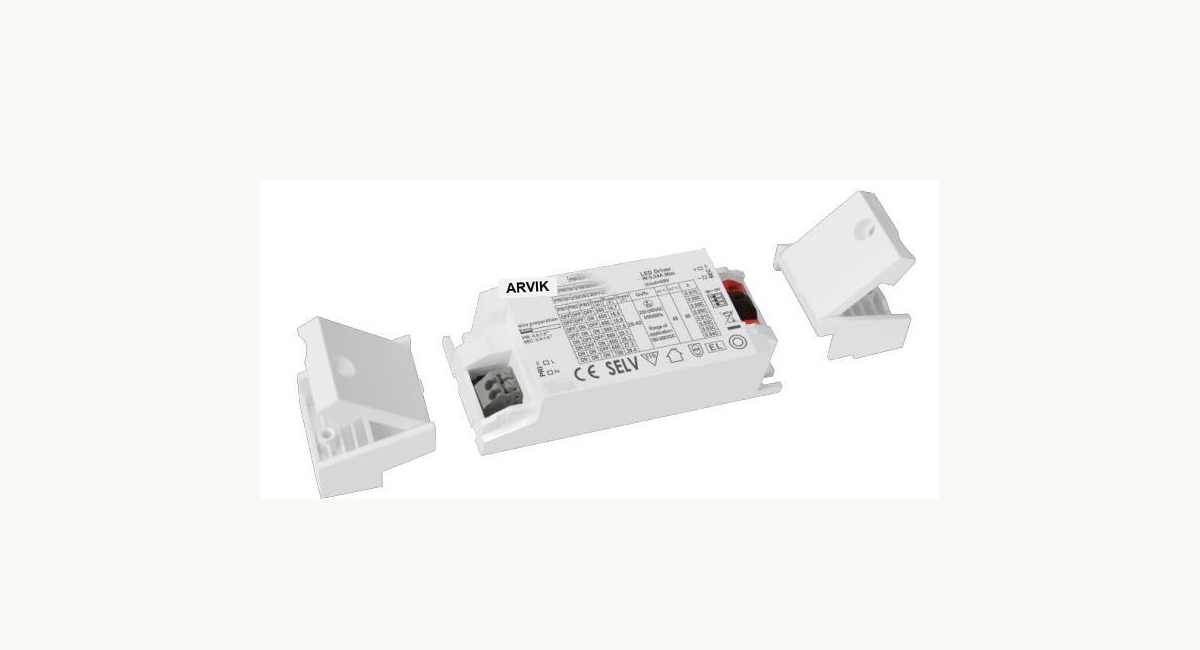

ARVIK MINI 21

AR-21-500-MI-A-H

An efficient 21 W driver with eight selectable output-current settings for 25-42 VDC LED modules.

Power: 21 W
Current: 150-500 mA
Voltage: 25-42 VDC
Control: ON-OFF

97 × 43 × 22.8 mm
Up to 93%
THD < 6%

Download datasheet Enquire

01.03

Compact / ON-OFF

ARVIK MINI 30

AR-30-700-MI-A-H

A compact 30 W option for higher-output spotlight and downlight luminaires, adjustable from 350 to 700 mA.

Power: 30 W
Current: 350-700 mA
Voltage: 25-42 VDC
Control: ON-OFF

97.5 × 44 × 22.8 mm
Up to 93%
THD < 6%

Download datasheet Enquire

01.04

Compact / ON-OFF

ARVIK MINI 44

AR-44-1050-MI-A-H

A high-performance 44.1 W driver for higher-output luminaires, with output current up to 1050 mA.

Power: 44.1 W
Current: 700-1050 mA
Voltage: 25-42 VDC
Control: ON-OFF

97 × 43 × 22.8 mm
Up to 94%
THD < 7%

Download datasheet Enquire

01.05

Compact / DALI-2

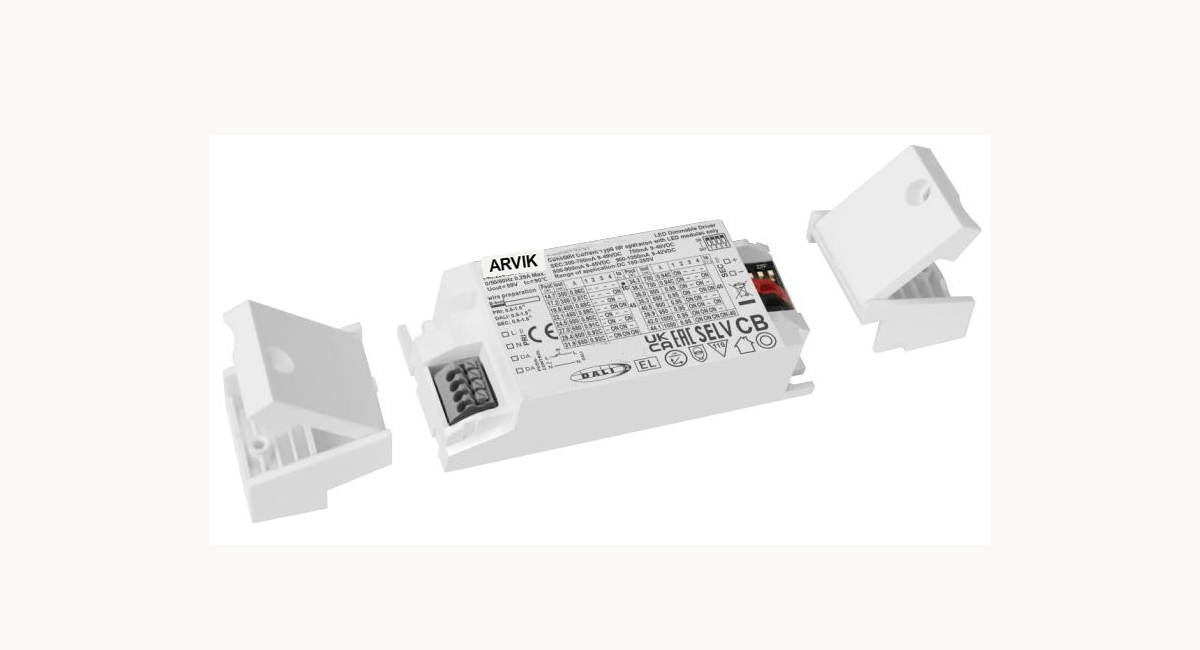

ARVIK MINI 44 DALI

AR-44-1050-MI-DALI-A

A versatile 44.1 W DALI-2 driver with a wide output-current and output-voltage range.

Power: 44.1 W
Current: 300-1050 mA
Voltage: 9-49 VDC*
Control: DALI-2 / PUSH

97 × 43 × 22.8 mm
DALI-2
SELV

Download datasheet Enquire

Track adapter drivers

A driver integrated into a track adapter - fewer components and a cleaner luminaire design.

02.01

Adapter-driver / ON-OFF

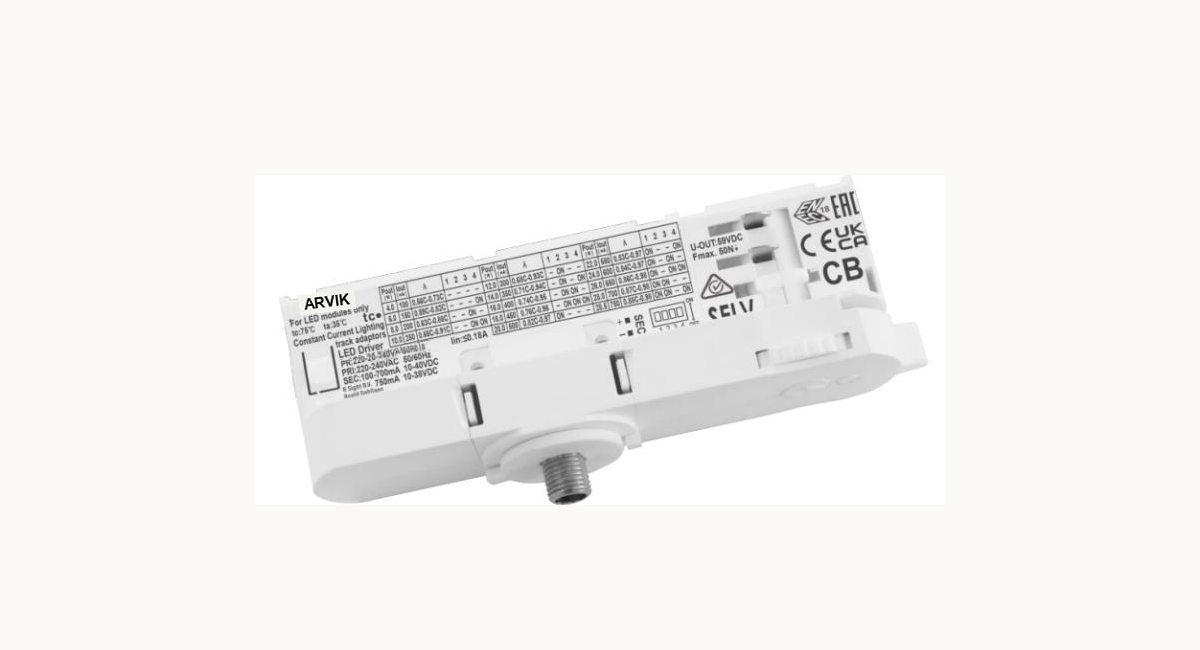

ARVIK TRACK 28

AR-28-750-TR-A-4

A compact track adapter driver rated up to 28.5 W and designed for popular three-circuit track systems.

Power: 28.5 W
Current: 100-750 mA
Voltage: 10-40 VDC*
Control: ON-OFF

123.1 × 31.1 × 42.2 mm
Up to 88%
Flicker-free

Download datasheet Enquire

02.02

Adapter-driver / DALI-2

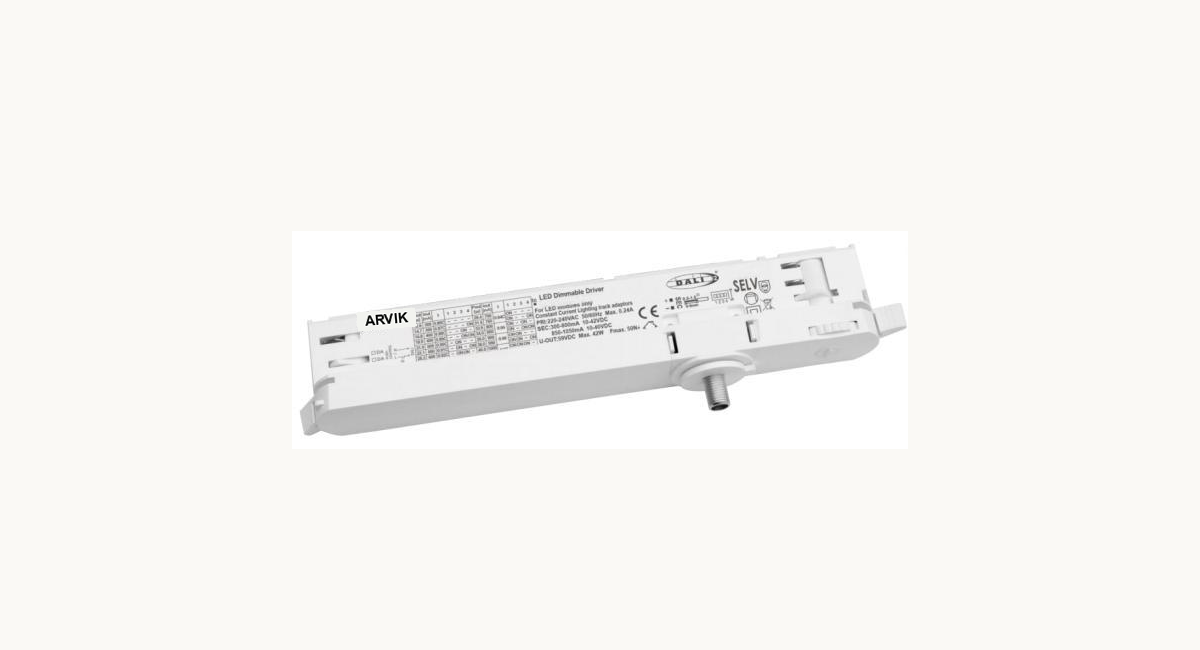

ARVIK TRACK 30 DALI

AR-30-750-TR-DALI-A-6

An extended 30 W track adapter driver with DALI-2 control for dimmable track-lighting systems.

Power: 30 W
Current: 100-750 mA
Voltage: 10-40 VDC
Control: DALI-2

217.8 × 31.1 × 42.2 mm
DALI-2
SELV

Download datasheet Enquire

Linear drivers

A slim format for linear luminaires and constructions where the driver runs along the luminaire profile.

03.01

Linear / DALI-2

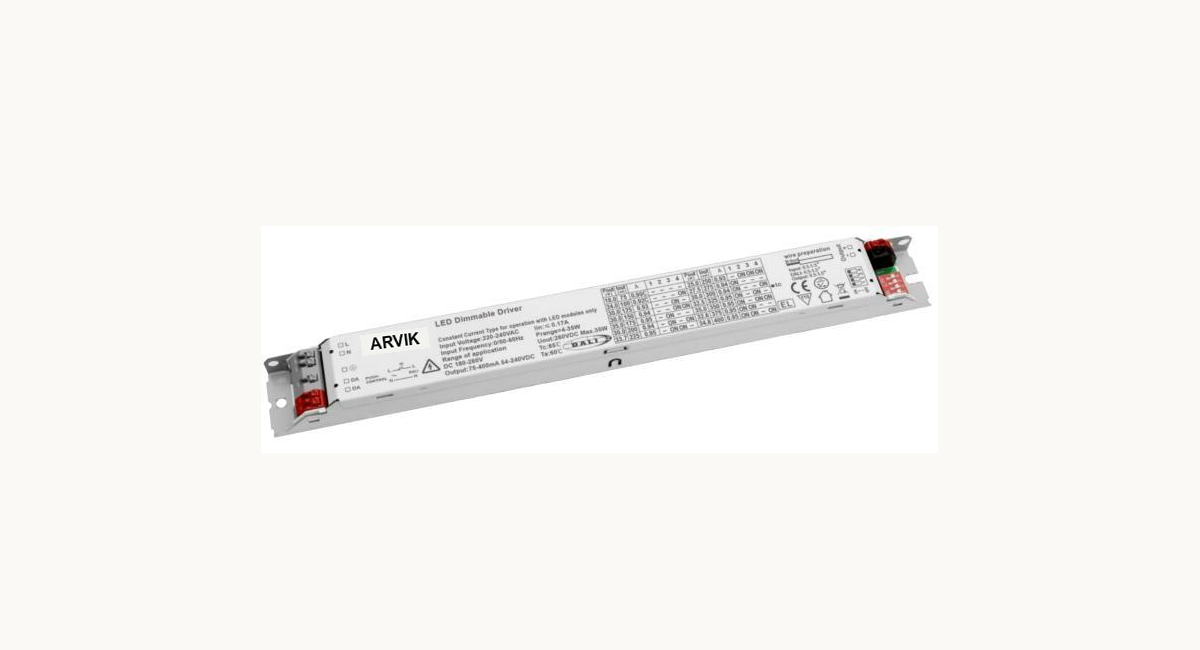

ARVIK LINEAR 60 DALI

AR-60-550-LI-DALI-AN

A non-isolated 60 W linear driver with DALI-2 and a very wide output-voltage range.

Power: 60 W
Current: 120-550 mA
Voltage: 54-240 VDC*
Control: DALI-2 / PUSH

280 × 29.4 × 21 mm
Up to 94.4%
Class I

Download datasheet Enquire

Why ARVIK

An LED driver should never be an afterthought.

We treat the driver as part of the luminaire system: it must fit electrically, mechanically and in installation. That is why we start with your project requirements, not a catalogue number.

Matched to the luminaire

We start with power, current, voltage, available space and the required control method.

Clear documentation

We organise specifications, dimensions and installation requirements in readable PDF datasheets.
